    Compact, One Layer Steel Wire Reinforced Hydraulic Hose

    EN 857 1SC steel wire reinforced hydraulic hose is almost similar to EN 853 1SN steel wire reinforced hydraulic hose in structure. And the difference is that it has smaller outside diameters, which solves the problem of the compact and narrow installation space of some equipment piping. It is suitable for high pressure working conditions for its high tensile steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making the hose resistant to abrasion and corrosion. The reinforcement is made from one layer of high tensile braided steel wire, making the hose resistant to high pressure. The cover is made from oil, abrasion, corrosion, weather and aging resistant synthetic rubber with cloth impression.

    INNER TUBE: oil resistant synthetic nitrile rubber

    REINFORCEMENT: one layer of high-tensile steel wire braided

    COVER: oil and weather resistant synthetic rubber

    APPLICATION: petroleum base and water base hydraulic fluids

    SURFACE: wrapped surface, smooth surface

    TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)

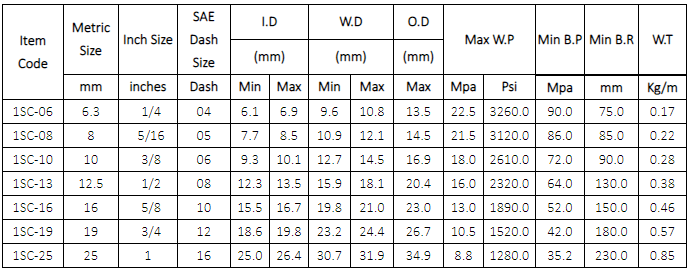

    Specification: EN857 1SC
